Steel ERW Welding Pipe Mill and Straight Seam Welded Pipe Production Line

Name: Steel ERW Welding Pipe Mill and Straight Seam Welded Pipe Production Line
Brand: TENGTIAN
Price: 100000 USD

Quality Steel ERW Welding Pipe Mill and Straight Seam Welded Pipe Production Line wholesale

Brand Name : TENGTIAN

Model Number : HG20

Place of Origin : CHINA

MOQ : 1SET

Price : $100000 to $1 million

Payment Terms : L/C, T/T, Western Union,

Supply Ability : 150sets one year

Delivery Time : Three months

Packaging Details : Seaworthy packing

Certification : ISO9001/BV/CE

product name : Steel ERW Welding Pipe Mill and Straight Seam Welded Pipe Production Line

MOLD : 8SET

Warranty : 1 Year

Pipe diameter : 8-20mm

Thickness : 0.3-1mm

Speed : 30-120m/min

Raw material : carbon steel

keywords : Steel ERW Welding Pipe Mill

Contact Now

Steel ERW Welding Pipe Mill and Straight Seam Welded Pipe Production Line Tube Making Line

HG20 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of 10~32mm in diameter and 0.5~1.5mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size.This production line’s each unit equipment, full use of the domestic and foreign similar equipment, innovative design, advanced technology, convenient operation and maintenance, and reached the international leading level.

1. Adapt materials:
Hot rolled or cold rolled steel strip
Material : Low carbon steel and low alloy constructional steel
δs≤345Mpa δb≤610Mpa
2.Processing steel pipe size range:
(1)Processing range:Round pipe Φ10-Φ32mm.
Square&Rectangular pipe10x10—25x25

(2)Thickness of Round pipe :0.5~1.5mm
Thickness of Square&Rectangular pipe :0.5~1.0mm
3.Installed capacity: 200KVA
4.Water consumption: 20m3/h
5.Solid-state high-frequency Welder:1KW
6.Workshop Request:length, width and height 30-50m X 12m X 5m

7.Forming speed:30-120m/min

More Specification

Model	Diameter(mm)	Thickness(mm)	Speed(m/min)	Main power(kw)	HF welder(KW)	Area(m2)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100

Product Tags:

stainless tube mills

slitting line machine

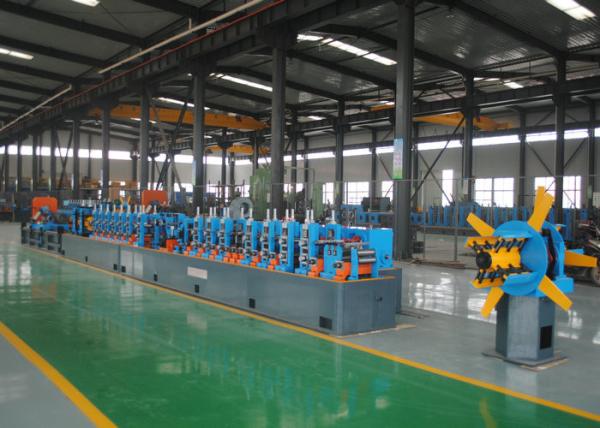

Steel ERW Welding Pipe Mill and Straight Seam Welded Pipe Production Line Images
